Vertechs Quick
Connector-Packer
Penetrator System

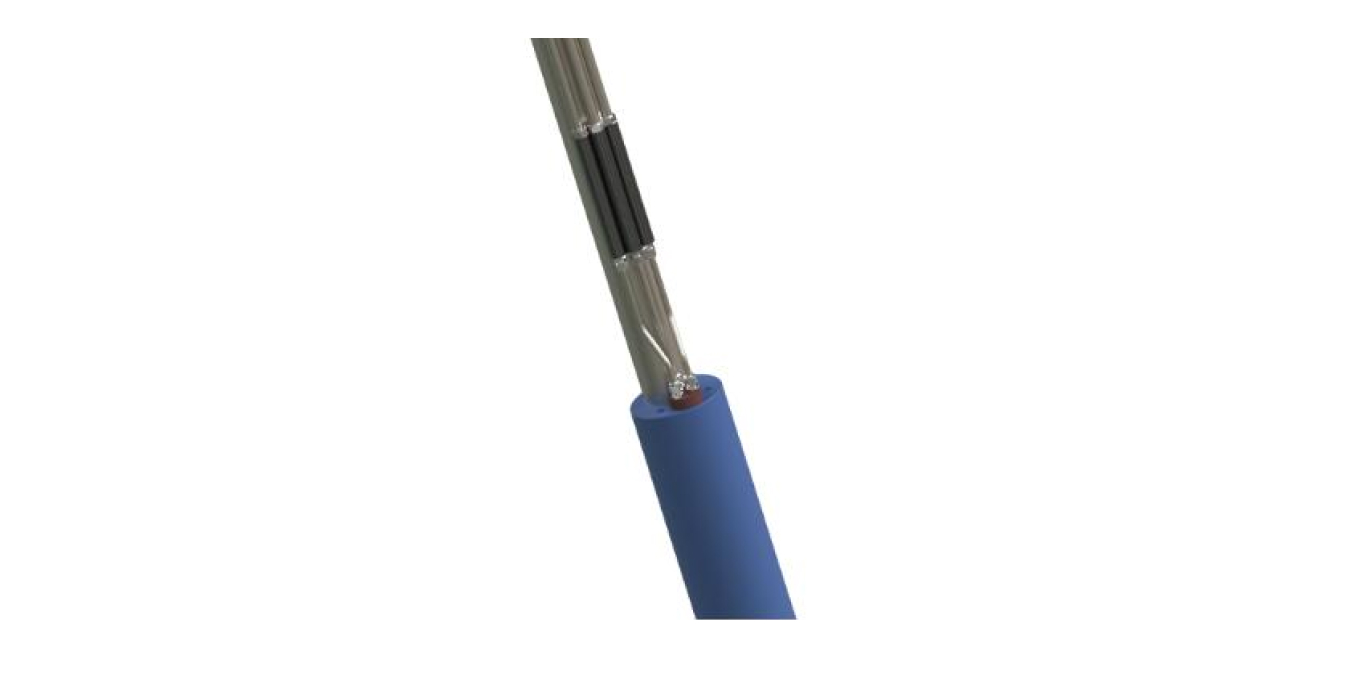

Vertechs Quick Connector (VQC) - Packer Penetrator System is a three-legged downhole ESP cable connector system. It is designed to provide the simplest and quickest cable connection without splicing, which significantly saves installation time and cost. A unique self-locking device ensures easy and successful electrical connections with high reliability. The VQC is also suitable for smaller annular clearance applications. An ultimately simple design with an economical quick connection at makes it an excellent solution for ESP packer penetration.

Specification

Pressure Rating

7,500psi

Voltage Rating

5000V (AC)

Current Rating

125A

Temperature Rating

302℉/1 50℃
