Fluid Rheology Monitoring for Deepwater Drilling | REALology Intelligent Drilling Fluids Monitoring System

In today's offshore oil and gas industry, maintaining optimal drilling fluid performance is essential for achieving safe, efficient, and cost-effective drilling operations. Among all drilling fluid properties, fluid rheology plays a critical role in hole cleaning, wellbore stability, pressure management, reservoir protection, and overall drilling efficiency.

However, traditional drilling fluid monitoring methods often rely on periodic manual testing, which can create delays between measurement and operational decision-making. In deepwater environments where conditions can change rapidly, these delays may increase the risk of fluid losses, well control incidents, and costly non-productive time (NPT).

To address these challenges, Vertechs developed the REALology Intelligent Drilling Fluids Monitoring System, an advanced automated solution designed to provide continuous, real-time drilling fluid analysis for modern drilling operations. A recent deepwater application demonstrated how this technology significantly improved monitoring accuracy, operational efficiency, and risk management in a challenging offshore environment.

Deepwater Drilling Project Overview

The case study involved a deepwater drilling platform operated by one of China's major offshore operators. The project included the drilling of three exploration wells, each reaching approximately 5,000 meters total depth. The drilling program utilized both water-based drilling fluids (WBM) and oil-based drilling fluids (OBM).

The wells were designed in an environment characterized by:

• High-temperature drilling conditions

• Potential drilling fluid losses

• Strict reservoir protection requirements

• Elevated well control risks

• Complex deepwater operational challenges

These conditions demanded continuous monitoring of critical drilling fluid properties and rapid operational response whenever abnormalities occurred.

Challenges in Drilling Fluid Monitoring

Limited Platform Space

Offshore drilling platforms often have severe space limitations. In this project, only approximately 2 m² of installation space was available for monitoring equipment. Any monitoring solution had to deliver comprehensive functionality within a compact footprint.

Harsh Offshore Environment

The monitoring system needed to operate reliably under conditions of:

• High temperature

• High humidity

• High salinity

These environmental factors place significant demands on equipment durability and operational stability.

Continuous High-Frequency Data Requirements

The drilling program required prolonged uptime and continuous data acquisition. Traditional manual drilling mud checks could not provide the monitoring frequency needed to detect rapid changes in fluid properties.

Well Control Risks

Because of the potential for fluid losses and formation influxes, maintaining proper drilling fluid properties was essential for well control. Early detection of abnormal fluid behavior was necessary to prevent downhole problems and ensure operational safety.

REALology Intelligent Drilling Fluids Monitoring System Solution

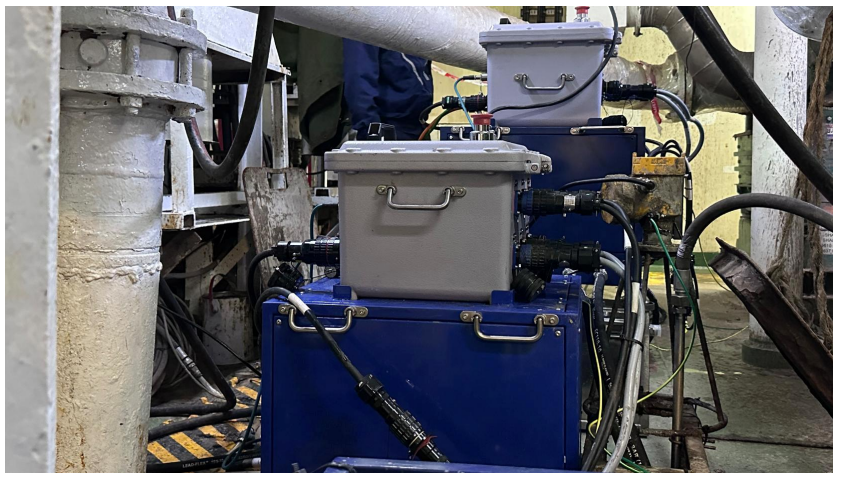

To overcome these challenges, Vertechs deployed two REALology Intelligent Drilling Fluids Monitoring System units on the platform.

The systems were installed at both the inlet and outlet of the circulation system, enabling continuous monitoring of key drilling fluid parameters, including:

• Fluid rheology and viscosity

• Density

• pH

• Chloride concentration

By monitoring these parameters in real time, operators could immediately identify changes in drilling fluid performance and make informed adjustments before minor issues developed into significant operational problems.

Real-Time Drilling Fluid Analysis

One of the most valuable capabilities of the REALology system is its ability to provide uninterrupted, real-time drilling fluid analysis.

Unlike traditional manual mud checks that provide only periodic snapshots, REALology continuously collects and processes drilling fluid data throughout the drilling operation. This allows engineers to:

• Detect abnormal fluid behavior immediately

• Monitor fluid rheology trends continuously

• Improve drilling fluid treatment decisions

• Enhance overall drilling performance

Real-time access to drilling fluid information enables a more proactive approach to drilling fluid management and reduces dependence on delayed manual reporting.

Enhanced Understanding of Downhole Conditions

Fluid rheology directly affects cuttings transport, pressure management, equivalent circulating density (ECD), and wellbore stability.

Through continuous monitoring and data analysis, the REALology system provided operators with a clearer understanding of downhole conditions. The data helped engineers:

• Evaluate fluid performance more accurately

• Protect sensitive reservoirs

• Identify fluid contamination events

• Avoid potential drilling hazards

This enhanced visibility allowed the drilling team to optimize fluid performance while maintaining safe drilling practices.

Early Warning Capabilities for Well Control

One of the most important benefits of continuous fluid monitoring is early anomaly detection.

The REALology system continuously compared drilling fluid properties throughout the circulation system and could rapidly identify abnormal changes that might indicate:

• Fluid losses

• Formation influxes

• Density variations

• Well control risks

This early warning capability enabled operators to take corrective action before conditions escalated, helping reduce non-productive time and improve overall drilling safety.

Accuracy Validation: REALology vs Manual Testing

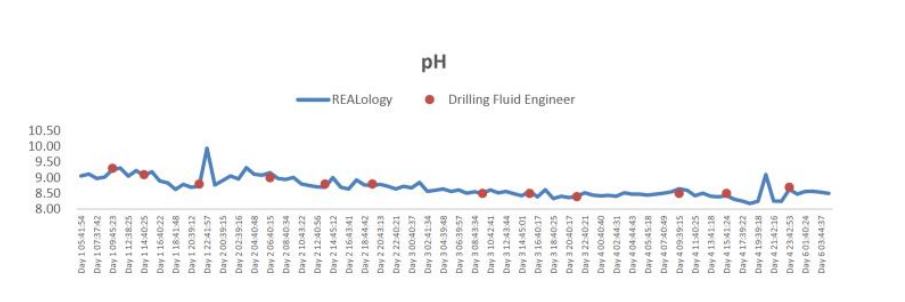

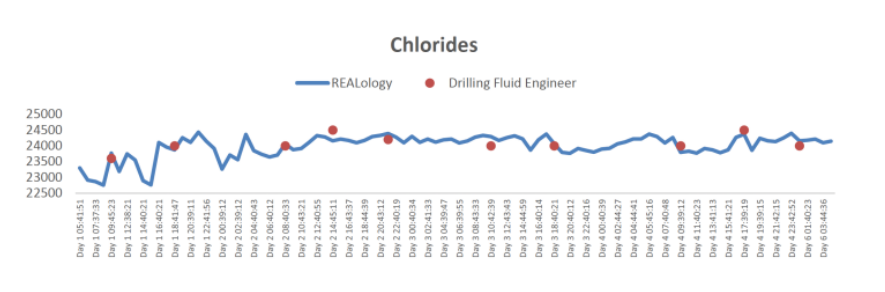

To verify measurement accuracy, Vertechs conducted a comparison between the REALology system and manual drilling fluid testing performed by an experienced drilling fluid engineer.

The results demonstrated a strong correlation between automated measurements and manual test results. Most importantly, the deviation between the REALology system and manual testing was found to be less than 3%.

This level of accuracy demonstrates that automated drilling mud monitoring can provide highly reliable data while significantly reducing reliance on manual measurements.

Results and Operational Benefits

The deployment of the REALology Intelligent Drilling Fluids Monitoring System delivered measurable operational improvements throughout the project.

24/7 Continuous Monitoring

All three wells were monitored continuously throughout their drilling sections, providing uninterrupted visibility into drilling fluid performance and enabling faster response to operational changes.

Automated Data Processing

The system automated data collection and analysis, reducing manual intervention and minimizing human error. This improved operational efficiency while freeing personnel to focus on higher-value engineering decisions.

Comprehensive Data Logging

Continuous monitoring generated a complete historical record of drilling fluid performance. This comprehensive dataset allowed engineers to conduct detailed post-well analysis and gain deeper insight into downhole conditions throughout the drilling campaign.

The Future of Fluid Rheology Monitoring

As offshore wells become deeper and operational conditions become more complex, traditional manual drilling fluid monitoring methods are increasingly unable to meet industry requirements.

The REALology Intelligent Drilling Fluids Monitoring System demonstrates how automated drilling mud monitoring can transform drilling fluid management through continuous measurement, real-time analysis, and intelligent decision support.

By providing accurate monitoring of critical drilling fluid properties, improving fluid rheology management, and delivering early warning capabilities, REALology helps operators reduce risk, improve drilling efficiency, and achieve safer, more reliable well performance.

For deepwater drilling projects where fluid performance directly impacts operational success, real-time fluid rheology monitoring is no longer simply an advantage—it is becoming an operational necessity.

Vertechs is committed to delivering innovative energy solutions that drive efficiency and sustainability. Our cutting-edge technologies and services are designed to meet the evolving needs of the energy industry. To learn more about how we can support your projects, please contact us.
