Vertechs iRCD Pro Max is an electric integrated wellbore pressure control system, upgraded from iRCD Pro to support micro-flow, deepwater, and other specialized operations. It expands pressure control capabilities from WBP to PMCD, FMCD, and MPC, fully replacing the functions of RCD and MPD manifolds with a single solution. Enhanced by intelligent control algorithms, iRCD Pro Max delivers greater flexibility, precision, and safety while reducing maintenance requirements and operational risks. It is customizable for land rigs, modular rigs, and jack-up rigs, improving overall efficiency, reliability, and cost-effectiveness.
Features
-
Enable transition from WBP to PMCD, FMCD, and MPC
-
Integrate all functions of iRCD and IPC MPD systems in a compact system (＜75 ft² (7㎡)) with ±15 psi (±0.1 MPa) pressure control accuracy
-
Reduce deployment time by 60%, crew by 50%, and costs by 30% compared with a conventional MPD spread
-
Upgrade service available from iRCD Pro to iRCD Pro Max
-
Applicable to land rigs, modular rigs, and jack-up rigs

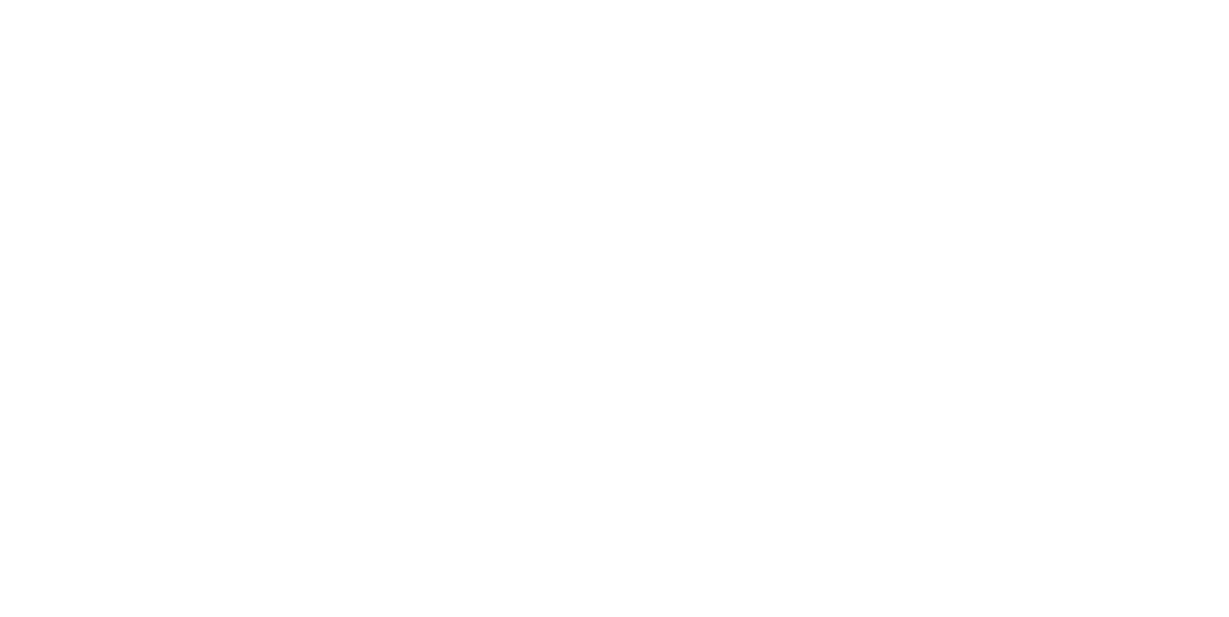

Specification
| iRCD Pro Max Specifications | |||
| Compliant With | API 16RCD, 16C, 16A | Latching System Actuator | Electric (48V DC, Explosion-proof, Non-decoupled) |
| Static Pressure Rating | 5,000 psi [35 MPa] | RCD | iRCD Spec. |
| Branches | 2 Choke Branches 1 Direct (Bypass) Branch 1 Flow meter Branch | Outlet Size | 4 1/16 in |
| Valves Qty | 9-10 pcs (Customizable) | Mass Flow Meter | 1 set |
| Footprint | < 75 ft² [< 7 m²] | Pressure Control Accuracy | ±15 psi [±0.1 MPa] |
| Packing Elements | Single / Dual | Lubricating & Cooling | Self-lubricating |
| iRCD Specifications | |||
| API Monogrammed | API 16RCD | Latching System Actuator | Electric (Low-voltage DC, Explosion-proof, Non-decoupled) |
| Static Pressure Rating | 5,000 psi [35 MPa] | Dynamic Pressure Rating | 2,500 psi [17.5 MPa] |
| Bearing Assembly Through-Bore | 8 1/4 in [210 mm] | Bottom Flange | 13 5/8 in |
| Housing Outlet | 7 1/16 in, 4 1/16 in, 2 1/16 in (Customizable) | RPM | 0-200 rpm |
| Housing Height | 53 in [1,345 mm] | Weight | 8,400 lbs [3.8 MT] |
| Packing Elements | Single / Dual | Lubricating & Cooling | Self-lubricating |
