Understanding the Role of Fluid Rheology in Cementing for Oil and Gas

In a high-stakes well construction environment, the integrity of a wellbore is usually determined by one operation, which is primary cementing. Although most people consider the mechanical strength of the set cement, the success of the whole procedure lies in the manner in which the cement behaves even when it is still in the liquid state. Here it is Fluid Rheology that comes into picture. Knowing the flow, deformation, and reactions of cement slurries to the environment, engineers will be able to make sure that the well is stable, safe, and productive over the decades.

Fluid Rheology in a Subsurface Environment

The art of fluid rheology is the flow of matter, generally in liquid form, but also as soft solids, or solids, under the circumstances that they have plastic flow instead of elastic response to an exerted force. This, in the oil and gas industry, particularly means the correlation between shear stress and shear rate. The cement slurries are normally not of Newtonian nature i.e. their viscosity varies with the pumping rate.

The flow profiles, i.e., the fluid acts in accordance with the Power Law or Herschel-Bulkley model, need to be known in order to predict how the slurry will flow down the casing and up the narrow gap between the pipe and the rock, i.e. the annulus.

The Effect of Viscosity and Yield Point of Plastic

The discussion of rheology in cementing is dominated by two parameters namely Plastic Viscosity (PV) and Yield Point (YP). Plastic Viscosity is the friction between the solids in slurry and the fluid phase, which prevents a flow of the slurry. An increase in PV can be interpreted to mean an increase in solid concentration or decrease in particle sizes. Yield Point on the other hand is the first stress needed to cause the fluid to flow.

The Yield Point in an actual sense is what maintains the suspension of the weighting agents and cement particles. When the YP is too low the solids will settle resulting in free water pockets which form channels through which the gas can move, which can cause a blowout. When the YP is too large, it will be very hard to restart pumps even after a few minutes of shut down resulting in unsafe pressure surges.

Optimal Displacement Efficiency

The main aim of a cementing job is to remove the drilling mud which is in the wellbore and substitute with clean and hard sheathing of cement. This is what is referred to as displacement efficiency. Unless the rheology of the cement is matched well with the drilling fluid, the cement can be expected to finger through the mud instead of displacing it as a solid plug.

To achieve maximum displacement the cement slurry must preferably be more viscous and denser than the fluid it is displacing. Correct fluid rheology makes it possible to have a flat flow profile, which ensures that cement flows toward the hole walls and causes the filter cake that the drilling mud leaves behind to be erased. This guarantees a good connection between the cement, the casing and the formation, which is the basis of zonal isolation.

Pressure Window and ECD Management

Controlling Equivalent Circulating Density (ECD) is one of the most subtle balancing activities in the drilling process. This is the useful density that a flowing fluid puts on the formation. The slurries of cement are thick and need pressure to flow making them very aggressive to the rock.

In case the rheology of the fluid imposes excessive friction, the ECD can surpass the fracture gradient of the rock, resulting in the formation cracking and resulting in lost circulation.

When the rheology is too thin, there is a possibility of the hydrostatic pressure being less than the pore pressure of the formation and this can result in gas or water moving into the wellbore before it is supposed to do so.

The ability to control the rheology accurately enables the engineers to remain within this drilling window such that the well remains intact as the cement is being laid.

Assuring Long-Term Zonal Isolation

Finally, zonal isolation, that is, the blocking of fluid movement between the geological strata is made possible with the rheology of fluids. In the case of a slurry with the right rheology, it seals all the voids and micro-annuli in the wellbore. This stops any type of migration of hydrocarbons to the freshwater aquifers and also safeguards the casing against corrosive fluids that exist in some rock layers. In the contemporary times of 2026 when the environmental regulations are more restrictive than ever, the importance of rheology in leak prevention is more than an operational choice; it is also a regulatory imperative.

About Vertechs

In Vertechs, we offer the solutions that are at the leading position in the industry and which optimize all stages of the well lifecycle. We are able to solve complicated problems in fluid rheology using our specialized knowledge of fluids and downhole tools. Our new technology and excellent services enable our partners to enjoy high zonal isolation and operational safety.

Frequently Asked Questions

1. What is the importance of yield point in cement slurries?

Yield point guarantees that cement solids suspended in the liquid do not sink at any time during pumping and when in an inactive state since this will cause solids to settle and form vulnerable areas.

2. What is the relationship between fluid rheology and temperature?

High temperatures normally lower the viscosity of the slurry by making it thin. The rheology is stabilized with the help of special additives applied by engineers to the extreme heat of deepwell conditions.

3. What will occur in case the cement rheology is excessive?

As a result of excessive thickness, there is a high level of friction pressure, which has the ability to cut the formation in pieces, lose circulation and make it hard to pump the cement to the required height.

4. Is rheology useful to prevent migration of gases?

Yes, a slurry that has developed a high level of thixotropic characteristics forms a gel strength soon after pumping ceases, preventing the entry of gas into the cement as it solidifies.

5. Is fluid rheology experimented at the rig location?

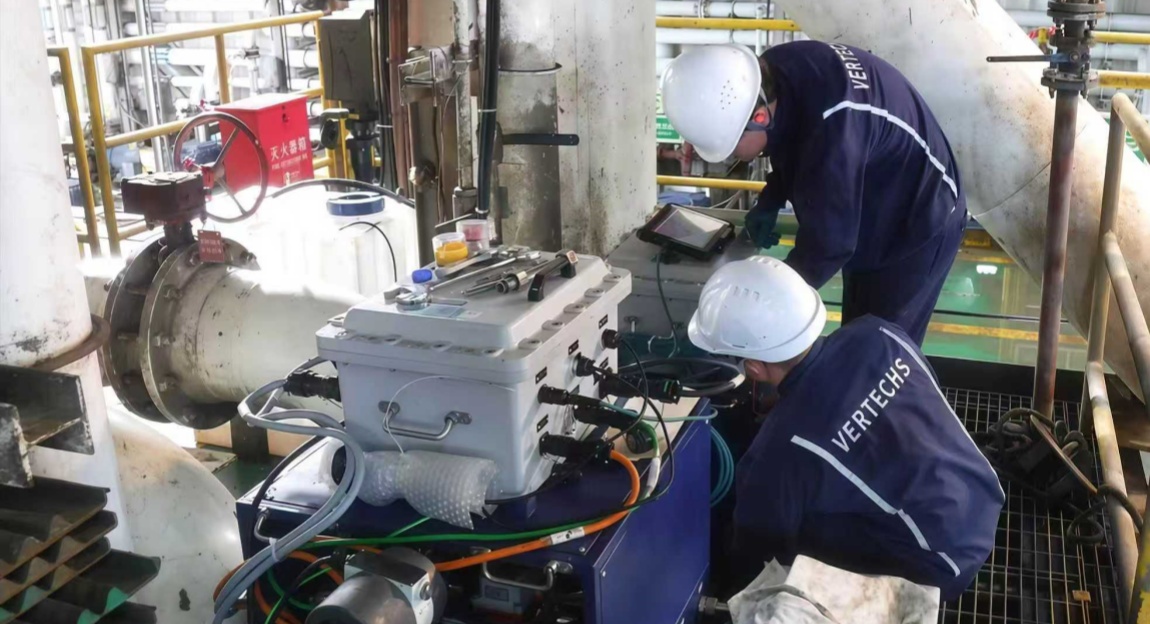

Absolutely. Viscometers are utilized in the field to ensure that the slurry is consistent with the pre-job design by having mud engineers and cement specialists on-site making the necessary adjustments.
